電動蝶閥（法蘭式）D941X-10/16?
電動蝶閥（法蘭式）D941X-10/16?

電動蝶閥（法蘭式）D941X-10/16?

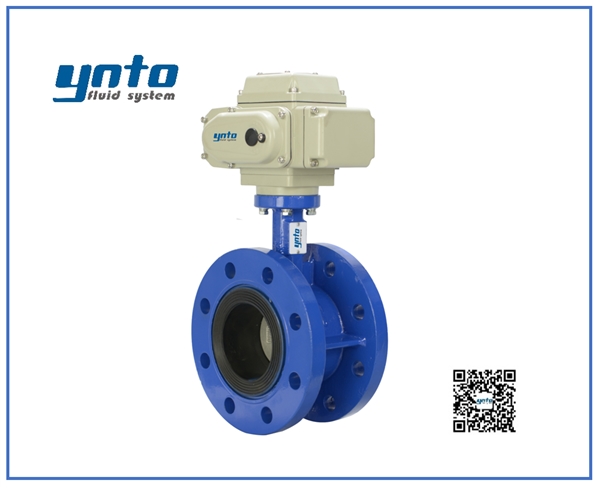

電動蝶閥（法蘭式）D941X-10/16



規格 ∮A ∮D ∮C H L1 n-∮d L 重量(KG)
PN10 PN16 PN10 PN16
DN50 164.0 125.0 125.0 55.0 343.5 161.00 4-∮18 4-∮18 108.5 8.43
DN65 181.0 145.0 145.0 67.0 354.5 161.00 4-∮18 4-∮18 112.0 8.78
DN80 195.0 160.0 160.0 83.0 370.5 161.00 4-∮18 8-∮18 114.0 9.35
DN100 215.0 180.0 180.0 108.0 395.0 127.00 8-∮18 8-∮18 128.0 13.07
DN125 245.0 210.0 210.0 126.0 422.0 127.00 8-∮18 8-∮18 141.0 16.55
DN150 280.0 240.0 240.0 160.0 465.5 127.00 8-∮22 8-∮22 141.0 22.83
DN200 337.0 295.0 295.0 206.0 567.0 268.00 8-∮22 12-∮23 154.5 31.46
DN250 404.0 350.0 355.0 250.0 629.0 268.00 12-∮23 12-∮26 166.0 52.53
DN300 445.0 400.0 410.0 305.0 701.0 268.00 12-∮23 12-∮26 180.0 56.69
DN350 505.0 460.0 470.0 348.0 925.0 268.0 12-∮23 16-∮26 190.0 78.2
DN400 565.0 515.0 525.0 395.0 981.0 268.0 12-∮26 16-∮30 216.0 111.2
DN450 615.0 565.0 585.0 447.0 1026.0 268.0 12-∮26 16-∮30 222.0 128.3
DN500 670.0 620.0 650.0 500.0 1074.0 268.0 20-∮26 20-∮33 229.0 158.8
DN600 780.0 725.0 770.0 602.0 1444.0 368.0 20-∮30 20-∮36 267.0 260.6
名稱Name 材料Materials
閥體Body 灰鑄鐵、球墨鑄鐵、鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
閥板Disc 球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
閥座Seat 三元乙丙、丁腈、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
閥軸Stem 45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#，Stainless Steel 304，Stainless Steel 316，Stainless Steel 416
產品型號Products Model D941X-10/16
公稱通徑Normal Diameter DN50-DN600
公稱壓力(Mpa)Normal Diameter PN1.0-1.6MPa
適用介質Applicable medium 水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
適用溫度Applicable temperature -10～110℃
